Most Effective Cell Emulators for Development, Validation and End-of-Line Testing

Basics on Cell Emulators

The Battery Management System (BMS) monitors and controls the operation of batteries in electric vehicles, aircraft and energy storage systems. Testing the BMS is essential to ensure that these batteries operate safely and reliably. This is where cell emulators come into play, accurately simulating the behavior of real batteries.

Test systems can be used to emulate battery packs at actual voltage and current levels. They enable automated, on-demand testing under reproducible conditions. Algorithms for estimating battery state of charge (SOC) and state of health (SOH) can be verified. Testing with emulated batteries is safer and faster than with real batteries because extreme conditions such as overvoltage or high temperatures can be safely simulated.
In addition, the Battery Cell Emulator (BCE) provides multiple independently isolated cells that can be connected in series to achieve high system voltages. This provides a comprehensive and safe test environment for the BMS.



Applications of Cell Emulators

The PTS Cell Emulator is our solution to provide cell sensing test capabilities for battery electronics in various systems including EVs or grid storage. With 18 differential cell voltage outputs the PTS Cell Emulator can be used in multiple applications during the whole development process. This brings significant gains for quality and speed in Software Development, Validation or End-Of-Line testing.

Development

Algorithm development
BMS Software testing and
verification

Validation

HiL system integration
Hardware validation

Quality Assurance

End -of-Line testing in production

Key Features of
PTS Cell Emulators

In case more cell emulations are needed multiple PTS Cell Emulators can be controlled in a single CAN. The integrated microcontrollers per cell enable additional realtime functions like wave-form generation or open circuit injection.

  • Integrated open circuit fault injection

  • Separated supply and sense connections

  • Separated measuring connectors for external calibrated DMMs

  • Integrated Waveform generator

  • Programmable Microcontroller


  • Addressable to support multiple emulators in one setup

  • Integrated high accuracy measurement 100uA range

  • Emulation up to 18 differential cell voltage per emulator

  • Cell output voltage 0,5V - 4,5V


Your Benefits from
PTS Cell Emulators

1

Efficient

Cost-effective design ensures efficient performance, avoiding unnecessary features, and maximizing resource utilization across various applications.

2

Effective

Enhances software development and testing speed with 18 differential outputs and real-time functions for comprehensive validation.

3

Easy Integration

Seamlessly integrates with existing systems (e.g. CANoe), supporting multiple units through a single CAN interface for flexible scalability.

networking-concept-still-life-arrangement (1).jpg

Buy and Try

Get Refund for 30 Days

  18 Cell Channels 19.500 € (excl. VAT)

Client Applications of
PTS Cell Emulators

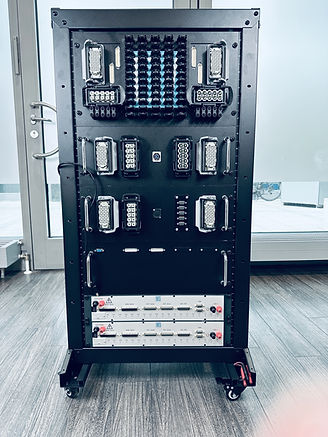

Development Rack

Self-Installation Rack for  R&D
108 Cell Channels

OEM


Hardware-in-the-Loop

BMS HiL for R&D
36 Cell Channels

TIER 1 supplier


Functional Tester

CMB FCT for Production

54 Cell Channels

TIER 1 supplier

Request Buy And Try Info
